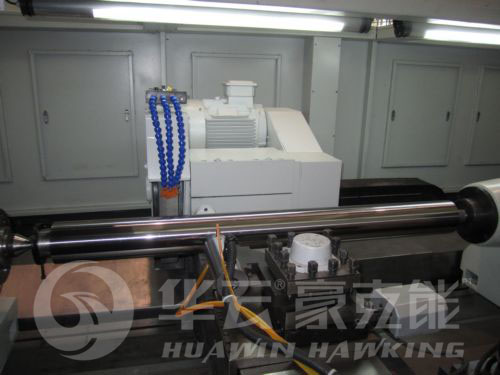

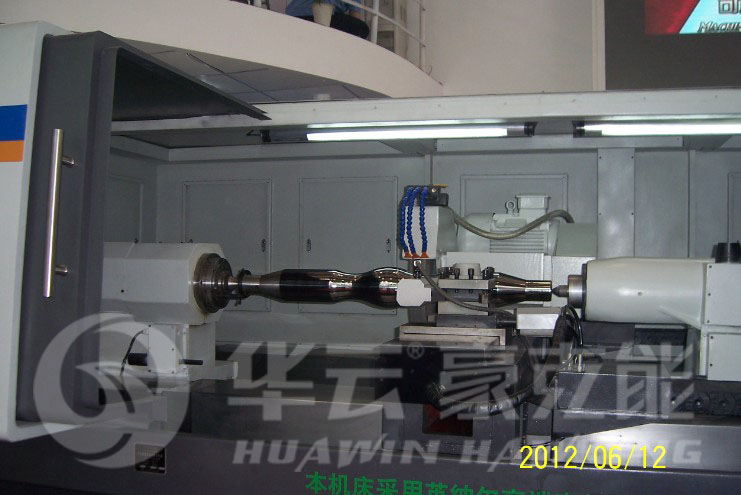

Hawking CNC complex superfinishing machine


 --Great Innovation For Surface Superfinishing &Provide Complex Problems Solutions
--Including turning,grinding and superfinishing process
--Replace lathe and grinding/polishing/rolling machine

The brief:

1. Obtain roughness below Ra0.1 easily;

2.Suitable for different shapes,such as cylindrical,internal,screw rod,curved and spherical,ect;

3.Suitable for all kinds of matierals,such as stainless steel,carbon steel, aluminum alloy,copper,brass,ect;

4.Suitable for different industies,such as Turbine,Mining machinery,Mechanical valve,Petroleum Machinery,Bearing mechanical, Mold,Paper machinery,Pharmaceutical Machinery centrifuge,Piston rod,Hydraulic cylinder,Helical rod,Metallurgical Machinery,Wind power,Hydropower,Motor.

5.Just one process,improve production efficiency greatly;

6.Improve the micro hardness 20%;

7.Improve the wear resistance;

8.Improve the fatigue life 5 ~100 times;

9.Suitable for the hardness below HRC65;

10.Improve corrosion resistance;

11.It’s a nonabrasive process,without abrasive,felt,lapping compounds and hardwork.

12.Easy to operate;

The pricinple:

According to characteristic of metal cold plasticity in the normal temperature and apply Hawking superfinishing equipment to superfinish the surface without any abrasive and obtain good surface quality.this process just like ironing clothes;at the same time,this process create ideal compressive stress which can improve the surface roughness,micro hardness,wear resistance,fatigue strength and life.

The process:

Turning first,then superfinishing,which just like ironing the clothes,and a kind of compressive stress will be created on the surface at the same time,the mico hardness will be improved more than 20%,the wear resisitance will be improved greatly and the life will be improved 5 ~100 times.

The description:

There is a ball wearing which made from a special materials on the head,

it's very different from the rolling,polishing,grinding and other process,

more precisely,it just like ironing the clothes,

never remove any materials from the surface,

the ball wearing impacts the surface 30,000 times per second with very little force about 2.5N,

the temperature is little higher than the normal temperature when processing,

it's a nonabrassive process,without abrasive,felt,lapping compounds and hardwork,

save time and cost greatly,and very environmental.
